IDT74LVC244A - 3.3V CMOS OCTAL BUFFER/DRIVER WITH 3-STATE OUTPUTS/ 5 VOLT TOLERANT I/O

IDT74LVC244A Description

IDT74LVC244A 3.3V CMOS OCTAL BUFFER/DRIVER WITH 3-STATE OUTPUTS INDUSTRIAL TEMPERATURE RANGE 3.3V CMOS OCTAL BUFFER/DRIVER WITH 3-STATE OUTPUTS, 5 V.
DRIVE FEATURES: APPLICATIONS: The LVC244A device is organized as two 4-bit line drivers with separate output-enable (OE) inputs.

IDT74LVC244A Applications

* The LVC244A device is organized as two 4-bit line drivers with separate output-enable (OE) inputs. When OE is low, the device passes data from the A inputs to the Y outputs. When OE is high, the outputs are in the highimpedance state. The LVC244A has been designed with a ±24mA output driver. This

📥 Download Datasheet

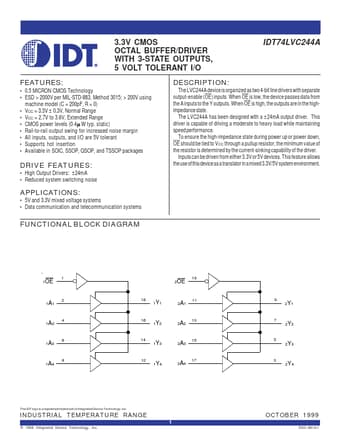

Preview of IDT74LVC244A PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
IDT74LVC244A
Manufacturer
Integrated Device
File Size
63.26 KB
Datasheet
IDT74LVC244A_IntegratedDeviceTechnology.pdf
Description
3.3V CMOS OCTAL BUFFER/DRIVER WITH 3-STATE OUTPUTS/ 5 VOLT TOLERANT I/O
