IDT74LVC157A, 3.3V CMOS QUAD 2-LINE TO 1-LINE DATA SELECTOR/MULTIPLEXER / 5 VOLT TOLERANT I/O

IDT74LVC157A 3.3V CMOS QUADRUPLE 2-LINE TO 1-LINE DATA SELECTOR EXTENDED COMMERCIAL TEMPERATURE RANGE 3.3V CMOS QUADRUPLE 2-LINE TO 1-LINE DATA SELE.
This quadruple 2-line to 1-line data selector/multiplexer is built using advanced dual metal CMOS technology.

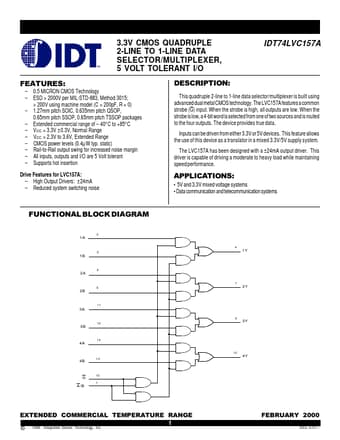

datasheet Preview Page 1 from Datasheet4u.com

IDT74LVC157A_IntegratedDeviceTechnology.pdf

IDT74LVC157A Datasheet Preview — Preview of IDT74LVC157A PDF

Datasheet Details

Part number:

IDT74LVC157A

Manufacturer:

Integrated Device Technology

File Size:

109.83 KB

Description:

3.3V CMOS QUAD 2-LINE TO 1-LINE DATA SELECTOR/MULTIPLEXER / 5 VOLT TOLERANT I/O

Features

* 0.5 MICRON CMOS Technology ESD > 2000V per MIL-STD-883, Method 3015; > 200V using machine model (C = 200pF, R = 0) 1.27mm pitch SOIC, 0.635mm pitch QSOP, 0.65mm pitch SSOP, 0.65mm pitch TSSOP package

Applications

* 5V and 3.3V mixed voltage systems
* Data communication and telecommunication systems FUNCTIONAL BLOCK DIAGRAM 1A 2 4 1B 3 1Y 2A 5 7 2B 6 2Y 11 3A 9 3B 10 3Y 4A 14 12 4B 13 4Y G A/B 15 1 EXTENDED COMMERCIAL TEMPERATURE RANGE 1 c 1999 Integrated Device Techn
