IS41LV16105B - 1M x 16 (16-MBIT) DYNAMIC RAM WITH FAST PAGE MODE

IS41LV16105B Description

IS41LV16105B 1M x 16 (16-MBIT) DYNAMIC RAM WITH FAST PAGE MODE .
The ISSI IS41LV16105B is 1,048,576 x 16-bit high-performance CMOS Dynamic Random Access Memories.

IS41LV16105B Features

* TTL compatible inputs and outputs; tristate I/O
* Refresh Interval:
* 1,024 cycles/16 ms
* Refresh Mode:
* RAS-Only, CAS-before-RAS (CBR), and Hidden
* JEDEC standard pinout
* Single power supply: 3.3V ± 10%
* Byte Write and Byte Read

IS41LV16105B Applications

* The IS41LV16105B is packaged in a 42-pin 400-mil SOJ and 400-mil 44- (50-) pin TSOP (Type II). KEY TIMING PARAMETERS Parameter Max. RAS Access Time (tRAC) Max. CAS Access Time (tCAC) Max. Column Address Access Time (tAA) Min. Fast Page Mode Cycle Time (tPC) VDD I/O0 I/O1 I/O2 I/O3 VDD I/O4 I/O5 I/

📥 Download Datasheet

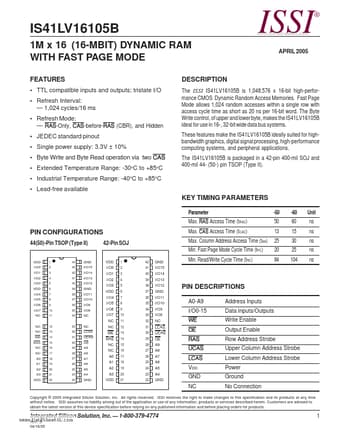

Preview of IS41LV16105B PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
IS41LV16105B
Manufacturer
Integrated Silicon Solution
File Size
166.10 KB
Datasheet
IS41LV16105B_IntegratedSiliconSolution.pdf
Description
1M x 16 (16-MBIT) DYNAMIC RAM WITH FAST PAGE MODE
