IS43R32800F, IS43R83200F Datasheet - Integrated Silicon Solution

IS43R32800F 256Mb DDR SDRAM

x8 A0-A12 Row Address Input A0-A9 Column Address Input BA0, BA1 Bank Select Address DQ0 * DQ7 Data I/O CK, CK System Clock Input CKE Clock Enable CS Chip Select CAS Column Address Strobe Command RAS Row Address Strobe Command WE Write Enable 4 66 VSS 65 DQ7 64 VSSQ 63 N.

IS43R32800F Features

* DEVICE OVERVIEW

* VDD and VDDQ: 2.5V ± 0.2V

* SSTL_2 compatible I/O

* Double-data rate architecture; two data transfers per clock cycle

* Bidirectional, data strobe (DQS) is transmitted/ received with data, to be used in capturing data at the receiver

IS43R83200F-IntegratedSiliconSolution.pdf

This datasheet PDF includes multiple part numbers: IS43R32800F, IS43R83200F. Please refer to the document for exact specifications by model.

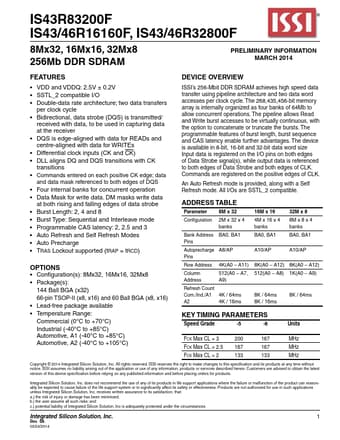

IS43R32800F Datasheet Preview Page 2 IS43R32800F Datasheet Preview Page 3

Datasheet Details

Part number:

IS43R32800F, IS43R83200F

Manufacturer:

Integrated Silicon Solution

File Size:

719.54 KB

Description:

256mb ddr sdram.

Note:

This datasheet PDF includes multiple part numbers: IS43R32800F, IS43R83200F.
Please refer to the document for exact specifications by model.
