IS43R83200F

256Mb DDR SDRAM

IS43R83200F Features

* DEVICE OVERVIEW

* VDD and VDDQ: 2.5V ± 0.2V

* SSTL_2 compatible I/O

* Double-data rate architecture; two data transfers per clock cycle

* Bidirectional, data strobe (DQS) is transmitted/ received with data, to be used in capturing data at the receiver

IS43R83200F General Description

x8 A0-A12 Row Address Input A0-A9 Column Address Input BA0, BA1 Bank Select Address DQ0

* DQ7 Data I/O CK, CK System Clock Input CKE Clock Enable CS Chip Select CAS Column Address Strobe Command RAS Row Address Strobe Command WE Write Enable 4 66 VSS 65 DQ7 64 VSSQ 63 N.

IS43R83200F Datasheet (719.54 KB)

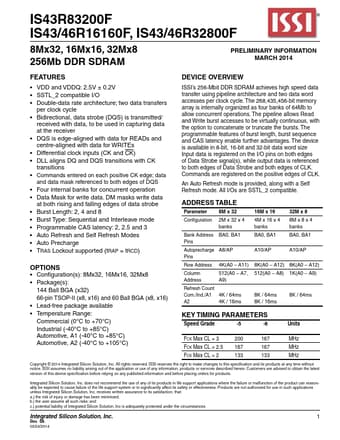

Preview of IS43R83200F PDF

Datasheet Details

Part number:

IS43R83200F

Manufacturer:

Integrated Silicon Solution

File Size:

719.54 KB

Description:

256mb ddr sdram.
