IS45S83200C, IS45S16160C Datasheet - Integrated Silicon Solution

IS45S83200C - 256 Mb Single Data Rate Synchronous DRAM

- Single 3.3V ±0.3V power supply - Max.

Clock frequency : - 6:166MHz<3-3-3>/-7:143MHz<3-3-3>/-75:133MHz<3-3-3> - Fully synchronous operation referenced to clock rising edge - 4-bank operation controlled by BA0,BA1(Bank Address) - /CAS latency- 2/3 (programmable) - Burst length- 1/2/4/8/FP (programm

IS45S83200C IS45S16160C 256 Mb Single Data Rate Synchronous DRAM www.DataSheet4U.com APRIL 2009 IS45S83200C is organized as 4-bank x 8,388,608-word x 8-bit Synchronous DRAM with LVTTL interface and IS45S16160C is organized as 4-bank x 4,194,304-word x 16-bit.

All inputs and outputs are referenced to the rising edge of CLK.

IS45S83200C and IS45S16160C achieve very high speed data rates up to 166MHz, and are suitable for main memories or graphic memories in computer systems.

General Descriptio

IS45S83200C Features

* Copyright © 2006 Integrated Silicon Solution, Inc. All rights reserved. ISSI reserves the right to make changes to this specification and its products at any time without notice. ISSI assumes no liability arising out of the application or use of any information, products or services described herein

IS45S16160C_IntegratedSiliconSolution.pdf

This datasheet PDF includes multiple part numbers: IS45S83200C, IS45S16160C. Please refer to the document for exact specifications by model.

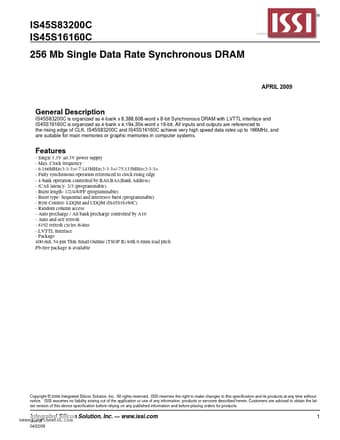

IS45S83200C Datasheet Preview Page 2 IS45S83200C Datasheet Preview Page 3

Datasheet Details

Part number:

IS45S83200C, IS45S16160C

Manufacturer:

Integrated Silicon Solution

File Size:

1.59 MB

Description:

256 mb single data rate synchronous dram.

Note:

This datasheet PDF includes multiple part numbers: IS45S83200C, IS45S16160C.
Please refer to the document for exact specifications by model.
