IS49FL004T

4 Mbit 3.3 Volt-only Firmware Hub/LPC Flash Memory

IS49FL004T Features

* SEPTEMBER 2013

* Single Power Supply Operation - Low voltage range: 3.0 V - 3.6 V

* Standard Intel Firmware Hub/LPC Interface - Read compatible to IntelĀ® 82802 Firmware Hub devices - Conforms to Intel LPC Interface Specification Revision 1.1

* Memory Configuration - IS49FL0

IS49FL004T General Description

The IS49FL004 is 4 Mbit 3.3 Volt-only Flash Memories used as BIOS in PCs and Notebooks. These devices are designed to use a single low voltage, ranging from 3.0 Volt to 3.6 Volt, power supply to perform insystem or off-system read, erase and program operations. The 12.0 Volt V power supply are not r.

IS49FL004T Datasheet (876.69 KB)

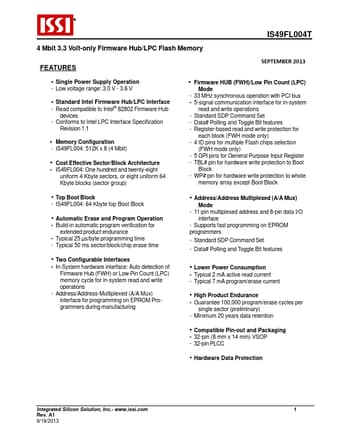

Preview of IS49FL004T PDF

Datasheet Details

Part number:

IS49FL004T

Manufacturer:

Integrated Silicon Solution

File Size:

876.69 KB

Description:

4 mbit 3.3 volt-only firmware hub/lpc flash memory.
