IS61C3216AL Datasheet - Integrated Silicon Solution

IS61C3216AL 32K x 16 HIGH-SPEED CMOS STATIC RAM

The ISSI IS61C3216AL is high-speed, 512Kb static RAMs organized as 32,768 words by 16 bits. They are fabricated using ISSI's high-performance CMOS technology. This highly reliable process coupled with innovative circuit design techniques, yields access times as fast as 12 ns with low power consumpti.

IS61C3216AL Features

* High-speed access time: 12 ns

* Low Active Power: 175 mW (typical)

* Low Standby Power: 1 mW (typical) CMOS standby

* TTL compatible interface levels

* Single 5V ± 10% power supply

* Fully static operation: no clock or refresh required

* Avai

IS61C3216AL_IntegratedSiliconSolution.pdf

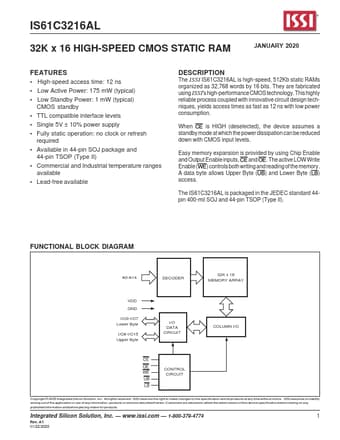

IS61C3216AL Datasheet Preview — Preview of IS61C3216AL PDF

Datasheet Details

Part number:

IS61C3216AL

Manufacturer:

Integrated Silicon Solution

File Size:

211.78 KB

Description:

32k x 16 high-speed cmos static ram.
