2N5020 Datasheet, Jfet, InterFET Corporation

2N5020 Features

  • Jfet
  • InterFET P0032F Geometry
  • Typical Noise: 10 nV/√Hz
  • Low Ciss: 3.2pF Typical
  • RoHS Compliant
  • SMT, TH, and Bare Die Package options. Applica

PDF File Details

Part number:

2N5020

Manufacturer:

InterFET Corporation

File Size:

373.34kb

Download:

📄 Datasheet

Description:

P-channel jfet. The 25V InterFET 2N5020 and 2N5021 are targeted for data switches and low-level chopper designs. Gate leakages are typically less tha

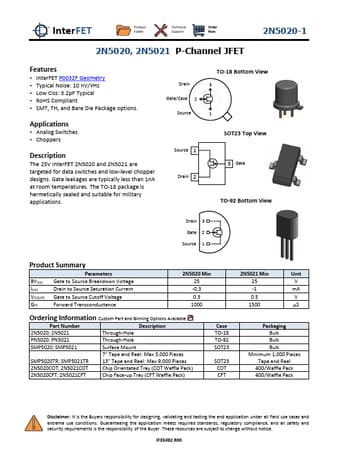

Datasheet Preview: 2N5020 📥 Download PDF (373.34kb)
Page 2 of 2N5020 Page 3 of 2N5020

2N5020 Application

  • Applications
  • Analog Switches
  • Choppers Description The 25V InterFET 2N5020 and 2N5021 are targeted for data switches and low-leve
