2N5021 Datasheet, Jfet, InterFET Corporation

2N5021 Features

• Jfet
• InterFET P0032F Geometry
• Typical Noise: 10 nV/√Hz
• Low Ciss: 3.2pF Typical
• RoHS Compliant
• SMT, TH, and Bare Die Package options. Applica

PDF File Details

Part number:

2N5021

Manufacturer:

InterFET Corporation

File Size:

373.34kb

Download:

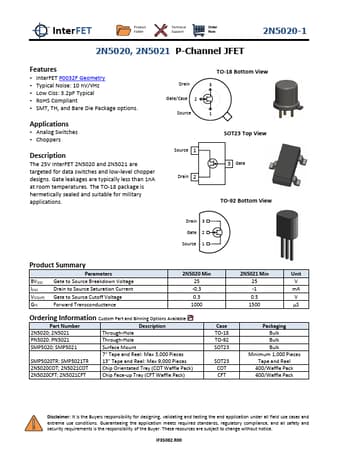

📄 Datasheet

Description:

P-channel jfet. The 25V InterFET 2N5020 and 2N5021 are targeted for data switches and low-level chopper designs. Gate leakages are typically less tha

2N5021 Application

• Applications
• Analog Switches
• Choppers Description The 25V InterFET 2N5020 and 2N5021 are targeted for data switches and low-leve
