2N5022 Datasheet - Motorola

2N5022 - GENERAL PURPOSE TRANSISTOR

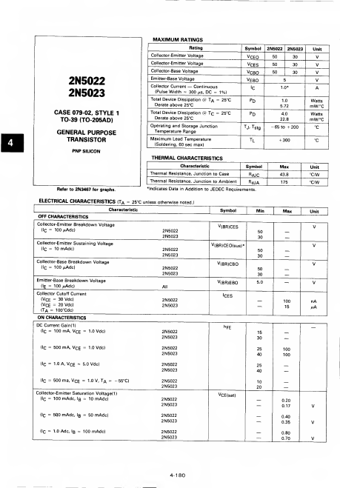

2NS022 2N5023 CASE 079-02, STYLE 1 TO-39 (TO-205AD) GENERAL PURPOSE TRANSISTOR PNP SILICON Refer to 2N3467 for graphs.

MAXIMUM RATINGS Rating Collector-Emitter Voltage Collector-Emitter Voltage Collector-Base Voltage Emitter-Base Voltage Collector Current Continuous (Pulse Width = 300 /xs, DC = 1%) @ Total Device Dissipation T^ = 25°C Derate above 25°C @ Total Device Dissipation Tq = 25°C Derate above 25°C Operating and Storage Junction Temperature Range Maximum Lead Temperature (Sold
