2N502B, 2N502 - PNP Transistor

2N502B Description

499 Germanium PNP high frequency transistors designed 2N for driver applications, small-signal amplification, wide (2N499JANAVAILABLE) band video .

2N502B Applications

* small-signal amplification, wide (2N499JANAVAILABLE) band video amplifiers, and VHF/UHF oscillators. 2N499A (2N499A JANAVAILABLE) 2N502 2N502A CASE 149 2N499. 2N499A

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: 2N502B, 2N502. Please refer to the document for exact specifications by model.

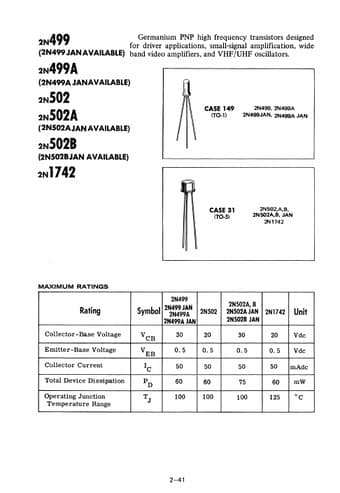

datasheet Preview Page 2

Datasheet Details

Part number
2N502B, 2N502
Manufacturer
Motorola
File Size
95.93 KB
Datasheet
2N502-Motorola.pdf
Description
PNP Transistor
Note
This datasheet PDF includes multiple part numbers: 2N502B, 2N502.
Please refer to the document for exact specifications by model.
