2N5023 GENERAL PURPOSE TRANSISTOR

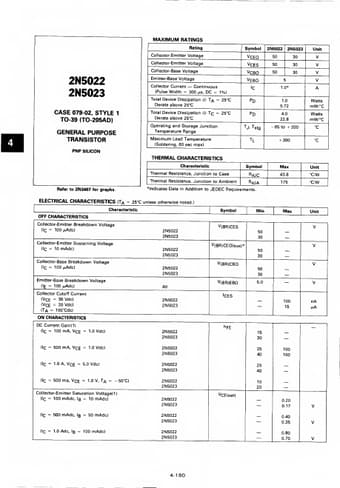

2NS022 2N5023 CASE 079-02, STYLE 1 TO-39 (TO-205AD) GENERAL PURPOSE TRANSISTOR PNP SILICON Refer to 2N3467 for graphs. MAXIMUM RATINGS Rating Collector-Emitter Voltage Collector-Emitter Voltage Collector-Base Voltage Emitter-Base Voltage Collector Current Continuous (Pulse Width = 300 /xs, DC = 1%) @ Total Device Dissipation T^ = 25°C Derate above 25°C @ Total Device Dissipation Tq = 25°C Derate above 25°C Operating and Storage Junction Temperature Range Maximum Lead Temperature (Sold.

2N5022-Motorola.pdf

2N5023 Datasheet Preview — This datasheet PDF includes multiple part numbers: 2N5023, 2N5022. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

2N5023, 2N5022

Manufacturer:

Motorola

File Size:

50.50 KB

Description:

General purpose transistor.

Note:

This datasheet PDF includes multiple part numbers: 2N5023, 2N5022.
Please refer to the document for exact specifications by model.
