GA200HS60S, Standard Speed IGBT

www.DataSheet.co.kr Bulletin I27121 rev.B 07/02 GA200HS60S "HALF-BRIDGE" IGBT INT-A-PAK .

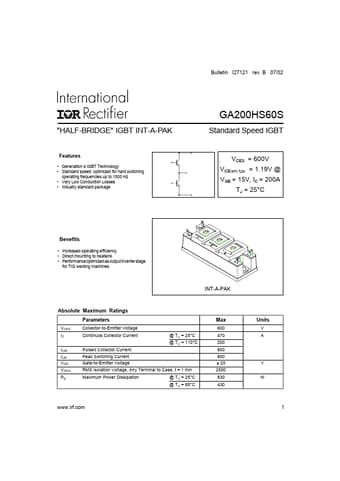

datasheet Preview Page 1 from Datasheet4u.com

GA200HS60S_InternationalRectifier.pdf

GA200HS60S Datasheet Preview — Preview of GA200HS60S PDF

Datasheet Details

Part number:

GA200HS60S

Manufacturer:

International Rectifier

File Size:

160.52 KB

Description:

Standard Speed IGBT

Features

* Generation 4 IGBT Technology
* Standard speed: optimized for hard switching operating frequencies up to 1000 Hz
* Very Low Conduction Losses
* Industry standard package Standard Speed IGBT VCES = 600V VCE(on) typ. = 1.19V @ VGE = 15V, IC = 200A TJ = 25°C Benefits
