IR2104PBF, HALF-BRIDGE DRIVER

Data Sheet No.PD60046-S IR2104(S) & (PbF) HALF-BRIDGE DRIVER .
The IR2104(S) are high voltage, high speed power 8 Lead SOIC MOSFET and IGBT drivers with dependent high and low 8 Lead PDIP IR2104S side referenced o.

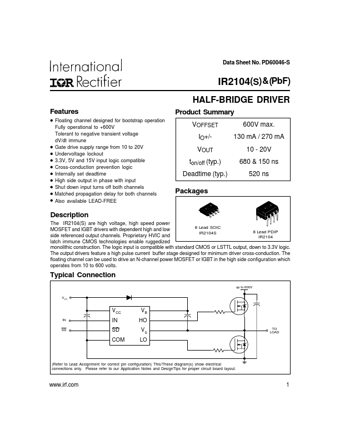

datasheet Preview Page 1 from Datasheet4u.com

IR2104PBF_InternationalRectifier.pdf

IR2104PBF Datasheet Preview — Preview of IR2104PBF PDF

Datasheet Details

Part number:

IR2104PBF

Manufacturer:

International Rectifier

File Size:

137.14 KB

Description:

HALF-BRIDGE DRIVER

Features

* Floating channel designed for bootstrap operation Fully operational to +600V Tolerant to negative transient voltage dV/dt immune Gate drive supply range from 10 to 20V Undervoltage lockout 3.3V, 5V and 15V input logic compatible Cross-conduction prevention logic Internally set deadtime Hig
