IR2104SPBF

HALF-BRIDGE DRIVER

Image Manufacturer B2B MPN Description Distributor Stock Quantity Price Buy Now
Distributor Infineon Technologies AG IR2104SPBF IC GATE DRVR HALF-BRIDGE 8SOIC DigiKey 7192 5035 units
$1.18

IR2104SPBF Datasheet (137.14 KB)

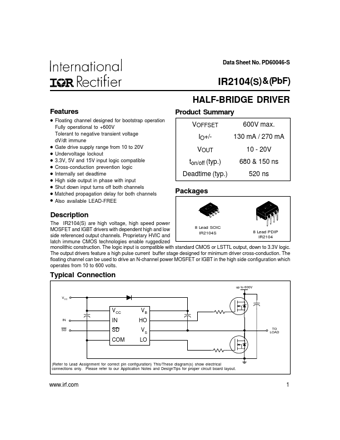

Preview of IR2104SPBF PDF

Datasheet Details

Part number:

IR2104SPBF

Manufacturer:

International Rectifier

File Size:

137.14 KB

Description:

Half-bridge driver.

IR2104SPBF Features

* Floating channel designed for bootstrap operation Fully operational to +600V Tolerant to negative transient voltage dV/dt immune Gate drive supply range from 10 to 20V Undervoltage lockout 3.3V, 5V and 15V input logic compatible Cross-conduction prevention logic Internally set deadtime Hig

IR2104SPBF General Description

The IR2104(S) are high voltage, high speed power 8 Lead SOIC MOSFET and IGBT drivers with dependent high and low 8 Lead PDIP IR2104S side referenced output channels. Proprietary HVIC and IR2104 latch immune CMOS technologies enable ruggedized monolithic construction. The logic input is compatible wi.
