IRF440

N-Channel Power MOSFET

International Rectifier

IRF440 Features

* Repetitive Avalanche Ratings

* Dynamic dv/dt Rating

* Hermetically Sealed

* Simple Drive Requirements

* ESD Rating: Class 2 per MIL-STD-750, Method 1020 Absolute Maximum Ratings Symbol Parameter ID1 @ VGS = 10V, TC = 25°C Continuous Drain Current ID2 @ VGS = 10V, TC = 100°

IRF440 General Description

HEXFET® MOSFET technology is the key to IR Hirel advanced line of power MOSFET transistors. The efficient geometry and unique processing of this latest “State of the Art” design achieves: very low on-state resistance combined with high trans conductance; superior reverse energy and diode recovery dv.

IRF440 Datasheet (565.96 KB)

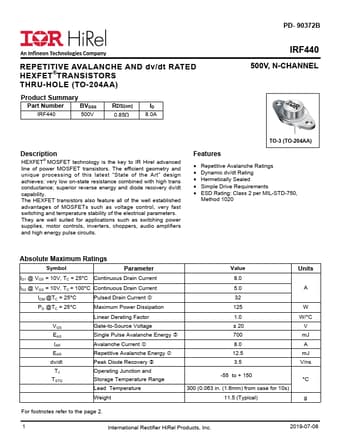

IRF440 Datasheet Preview — Preview of IRF440 PDF

Datasheet Details

Part number:

IRF440

Manufacturer:

International Rectifier

File Size:

565.96 KB

Description:

N-channel power mosfet.
REPETITIVE AVALANCHE AND dv/dt RATED HEXFET®TRANSISTORS THRU-HOLE (TO-204AA) Product Summary Part Number BVDSS IRF440 500V RDS(on) 0.85 ID 8.0.
