IRF8113PBF-1 - Power MOSFET

IRF8113PBF-1 Description

VDS RDS(on) max (@VGS = 10V) RDS(on) max (@VGS = 4.5V) Qg (typical) ID (@TA = 25°C) 30 5.6 6.8 24 17.2 V mΩ nC A .

IRF8113PBF-1 Features

* Industry-standard pinout SO-8 Package Compatible with Existing Surface Mount Techniques RoHS Compliant, Halogen-Free MSL1, Industrial qualification IRF8113PbF-1 HEXFET® Power MOSFET S1 S2 AA 8D 7D S3 G4 6D 5D Top View SO-8 Benefits ⇒ Multi-Vendor Compatibility Easier Manufacturing Environme

📥 Download Datasheet

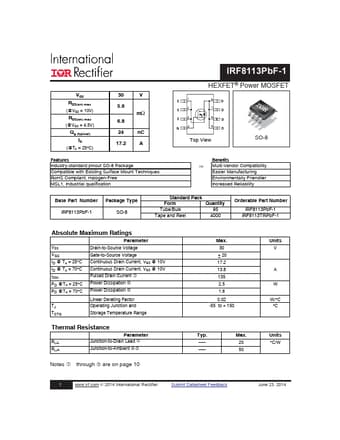

Preview of IRF8113PBF-1 PDF
datasheet Preview Page 2 datasheet Preview Page 3
