IRF8010 HEXFET Power MOSFET

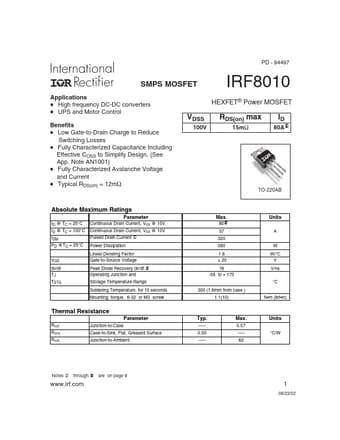

PD - 94497 SMPS MOSFET Applications High frequency DC-DC converters UPS and Motor Control Benefits Low Gate-to-Drain Charge to Reduce Switching Losses Fully Characterized Capacitance Including Effective COSS to Simplify Design, (See App. Note AN1001) Fully Characterized Avalanche Voltage and Current Typical RDS(on) = 12mΩ IRF8010 HEXFET® Power MOSFET VDSS 100V RDS(on) max 15mΩ ID 80A TO-220AB Absolute Maximum Ratings Parameter ID @ TC = 25°C ID @ TC = 100°C IDM PD @TC = 25°C VGS dv/dt TJ .

IRF8010 Features

* limitation current is 75A. TO-220 package is not recommended for Surface Mount Application. Data and specifications subject to change without notice. This product has been designed and qualified for the Industrial market. Qualification Standards can be found on IR’s Web site. IR WORLD HEADQUARTER
