IRF8010SPBF, IRF8010LPBF, HEXFET Power MOSFET

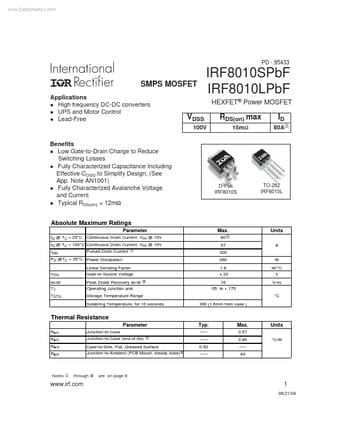

www.DataSheet4U.com PD - 95433 SMPS MOSFET Applications l High frequency DC-DC converters l UPS and Motor Control l Lead-Free IRF8010SPbF IRF8010LPbF HEXFET® Power MOSFET VDSS 100V RDS(on) max 15mΩ ID 80A Benefits l Low Gate-to-Drain Charge to Reduce Switching Losses l Fully Characterized Capacitance Including Effective COSS to Simplify Design, (See App.
Note AN1001) l Fully Characterized Avalanche Voltage and Current l Typical RDS(on) = 12mΩ D2Pak IRF8010S TO-262 IRF8010L Absolute Ma
IRF8010SPBF Features
* DE www.irf.com 9 IRF8010S/LPbF D2Pak Tape & Reel Information Dimensions are shown in millimeters (inches) TRR 1.60 (.063) 1.50 (.059) 4.10 (.161) 3.90 (.153) 1.60 (.063) 1.50 (.059) 0.368 (.0145) 0.342 (.0135) FEED DIRECTION 1.85 (.073) 1.65 (.065) 11.60 (.457) 11.40 (.449) 15.42 (.609) 15.22
