IRF8010S SMPS MOSFET

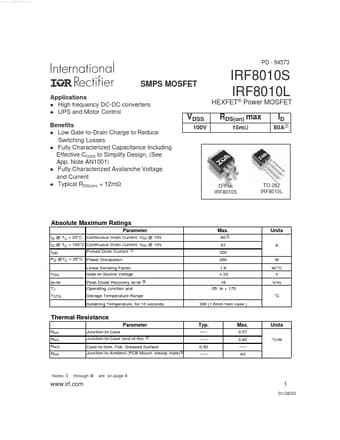

www.DataSheet.in PD - 94573 SMPS MOSFET Applications l High frequency DC-DC converters l UPS and Motor Control Benefits Low Gate-to-Drain Charge to Reduce Switching Losses l Fully Characterized Capacitance Including Effective COSS to Simplify Design, (See App. Note AN1001) l Fully Characterized Avalanche Voltage and Current l Typical RDS(on) = 12mΩ l HEXFET® Power MOSFET IRF8010S IRF8010L ID 80A 15mΩ VDSS 100V RDS(on) max D2Pak IRF8010S TO-262 IRF8010L Absolute Maximum Ratings Paramete.

IRF8010S Features

* nformation TRR 1.60 (.063) 1.50 (.059) 4.10 (.161) 3.90 (.153) 1.60 (.063) 1.50 (.059) 0.368 (.0145) 0.342 (.0135) FEED DIRECTION 1.85 (.073) 1.65 (.065) 11.60 (.457) 11.40 (.449) 15.42 (.609) 15.22 (.601) 24.30 (.957) 23.90 (.941) TRL 10.90 (.429) 10.70 (.421) 1.75 (.069) 1.25 (.049) 16.10 (.6
