IRF8010PBF Datasheet - International Rectifier

IRF8010PBF HEXFET Power MOSFET

www.DataSheet4U.com PD - 95505 Applications l High frequency DC-DC converters l UPS and Motor Control l Lead-Free SMPS MOSFET IRF8010PbF HEXFET® Power MOSFET VDSS 100V RDS(on) max 15mΩ ID 80A† Benefits Low Gate-to-Drain Charge to Reduce Switching Losses l Fully Characterized Capacitance Including Effective COSS to Simplify Design, (See App. Note AN1001) l Fully Characterized Avalanche Voltage and Current l Typical RDS(on) = 12mΩ l TO-220AB Absolute Maximum Ratings Parameter ID @ TC = 2.

IRF8010PBF Features

* h ≤ 300µs; duty cycle ≤ 2%. max. junction temperature. … Coss eff. is a fixed capacitance that gives the same charging time ‚ Starting TJ = 25°C, L = 0.31mH, RG = 25Ω, as Coss while VDS is rising from 0 to 80% VDSS. IAS = 45A. † Calculated continuous current based on maximum allowable

* ISD ≤ 45

IRF8010PBF Datasheet (156.44 KB)

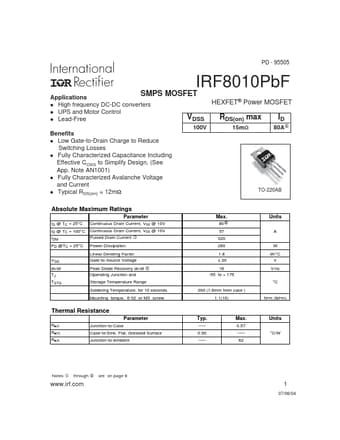

Preview of IRF8010PBF PDF
IRF8010PBF Datasheet Preview Page 2 IRF8010PBF Datasheet Preview Page 3

Datasheet Details

Part number:

IRF8010PBF

Manufacturer:

International Rectifier

File Size:

156.44 KB

Description:

Hexfet power mosfet.
