IRF9317, IRF9317PBF Power MOSFET

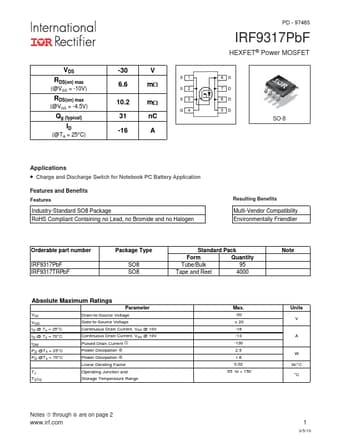

📥 Download Datasheet  Datasheet Preview Page 1

Description

VDS RDS(on) max (@VGS = -10V) RDS(on) max (@VGS = -4.5V) Qg (typical) ID (@TA = 25°C) -30 V 6.6 m: S1 S2 10.2 m: S3 G4 31 nC -16 A PD -.

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: IRF9317, IRF9317PBF. Please refer to the document for exact specifications by model.
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
IRF9317, IRF9317PBF
Manufacturer
International Rectifier
File Size
224.17 KB
Datasheet
IRF9317PBF_InternationalRectifier.pdf
Description
Power MOSFET
Note
This datasheet PDF includes multiple part numbers: IRF9317, IRF9317PBF.
Please refer to the document for exact specifications by model.

Features

* Features Industry-Standard SO8 Package RoHS Compliant Containing no Lead, no Bromide and no Halogen Resulting Benefits Multi-Vendor Compatibility Environmentally Friendlier Orderable part number IRF9317PbF IRF9317TRPbF Package Type SO8 SO8 Standard Pack Form Quantity Tube/Bulk 95 Tape and R
