IRF9321, IRF9321PBF Power MOSFET

IRF9321 Description

VDS RDS(on) max (@VGS = -10V) RDS(on) max (@VGS = -4.5V) Qg (typical) ID (@TA = 25°C) -30 V 7.2 mΩ 11.2 mΩ 34 nC -15 A PD - 95960 IRF9321PbF .

IRF9321 Features

* Features Industry-Standard SO-8 Package RoHS Compliant Containing no Lead, no Bromide and no Halogen Resulting Benefits results in Multi-Vendor Compatibility ⇒ Environmentally Friendlier Orderable part number IRF9321PbF IRF9321TRPbF Package Type SO8 SO8 Standard Pack Form Quantity Tube/Bulk

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: IRF9321, IRF9321PBF. Please refer to the document for exact specifications by model.

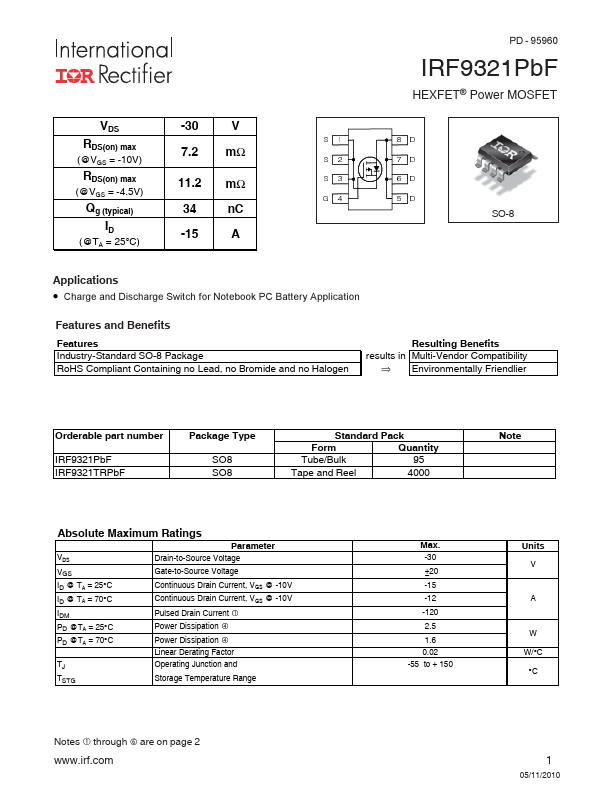

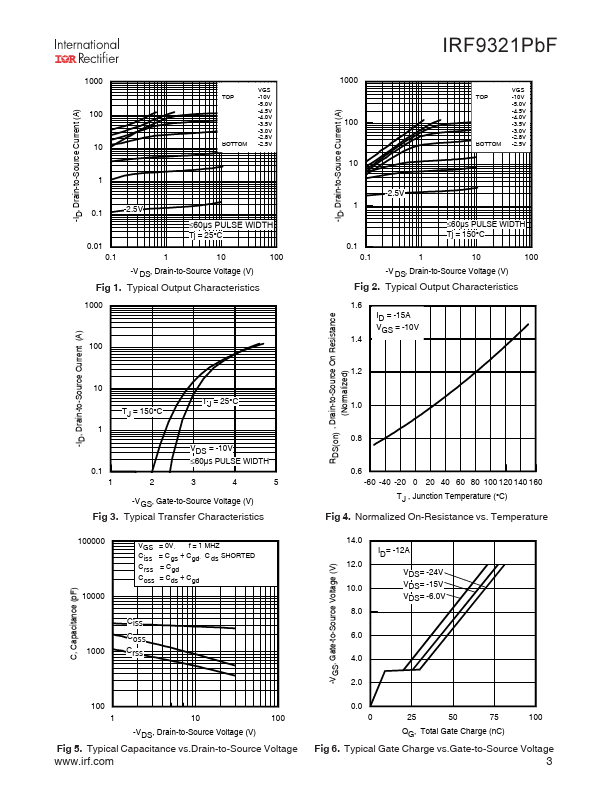

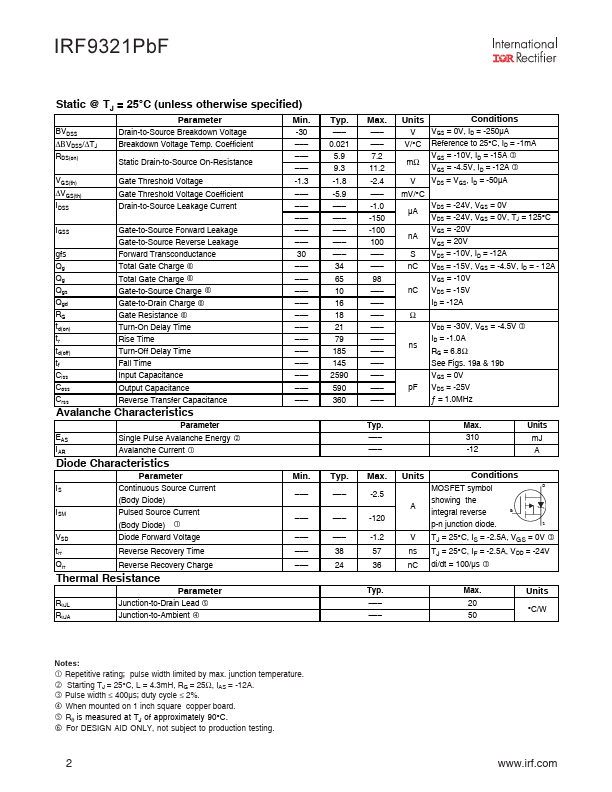

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
IRF9321, IRF9321PBF
Manufacturer
International Rectifier
File Size
280.22 KB
Datasheet
IRF9321PBF_InternationalRectifier.pdf
Description
Power MOSFET
Note
This datasheet PDF includes multiple part numbers: IRF9321, IRF9321PBF.
Please refer to the document for exact specifications by model.
