IRF9358, IRF9358PBF Datasheet - International Rectifier

IRF9358, IRF9358PBF, Power MOSFET

VDS RDS(on) max (@VGS = -10V) RDS(on) max (@VGS = -4.5V) Qg (typical) ID (@TA = 25°C) -30 V 16.3 mΩ 23.8 mΩ 19 nC -9.2 A PD - 97616 IRF9358.

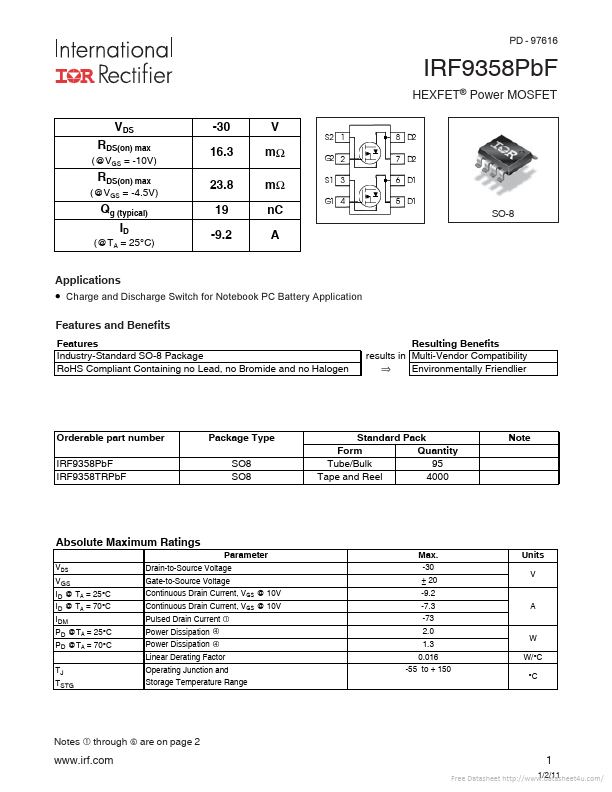

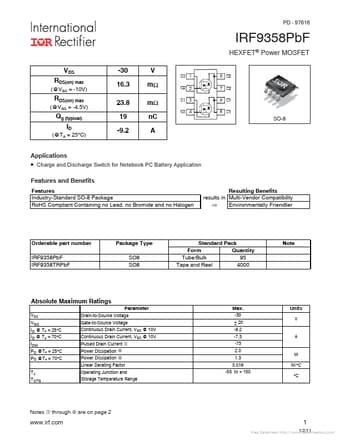

datasheet Preview Page 1 from Datasheet4u.com

IRF9358PBF_InternationalRectifier.pdf

IRF9358 Datasheet Preview — This datasheet PDF includes multiple part numbers: IRF9358, IRF9358PBF. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

IRF9358, IRF9358PBF

Manufacturer:

International Rectifier

File Size:

292.72 KB

Description:

Power MOSFET

Note:

This datasheet PDF includes multiple part numbers: IRF9358, IRF9358PBF.
Please refer to the document for exact specifications by model.

Features

* Features Industry-Standard SO-8 Package RoHS Compliant Containing no Lead, no Bromide and no Halogen Resulting Benefits results in Multi-Vendor Compatibility ⇒ Environmentally Friendlier Orderable part number IRF9358PbF IRF9358TRPbF Package Type SO8 SO8 Standard Pack Form Quantity Tube/Bulk
