IRFAE30 Datasheet - International Rectifier

IRFAE30 TRANSISTORS

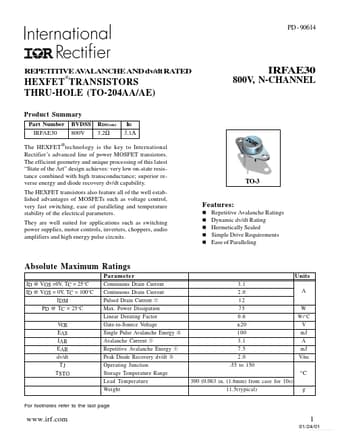

PD - 90614 REPETITIVE A V ALANCHE AND dv/dt RATED HEXFET TRANSISTORS THRU-HOLE (TO-204AA/AE) Product Summary Part Number IRFAE30 BVDSS 800V RDS(on) 3.2Ω ID 3.1Α  IRFAE30 800V, N-CHANNEL The HEXFETtechnology is the key to International Rectifier’s advanced line of power MOSFET transistors. The efficient geometry and unique processing of this latest “State of the Art” design achieves: very low on-state resistance combined with high transconductance; superior reverse energy and diode recover.

IRFAE30 Features

* n n n n n Repetitive Avalanche Ratings Dynamic dv/dt Rating Hermetically Sealed Simple Drive Requirements Ease of Paralleling Absolute Maximum Ratings Parameter ID @ VGS =0V, TC = 25°C ID @ VGS = 0V, TC = 100°C I DM PD @ TC = 25°C VGS EAS IAR EAR dv/dt TJ T STG Continuous Drain Current Continuous
