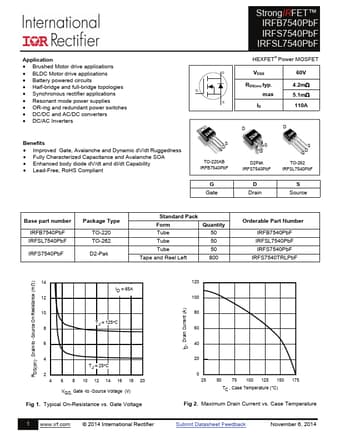

IRFB7540PbF Datasheet - International Rectifier

IRFB7540PbF Power MOSFET

Application  Brushed Motor drive applications  BLDC Motor drive applications  Battery powered circuits  Half-bridge and full-bridge topologies  Synchronous rectifier applications  Resonant mode power supplies  OR-ing and redundant power switches  DC/DC and AC/DC converters  DC/AC Inverters Benefits  Improved Gate, Avalanche and Dynamic dV/dt Ruggedness  Fully Characterized Capacitance and Avalanche SOA  Enhanced body diode d.

IRFB7540PbF Datasheet (628.51 KB)
