IRFB7540 Datasheet, Mosfet, INCHANGE

IRFB7540 Features

• Mosfet
• Static drain-source on-resistance: RDS(on) ≤5.1mΩ
• Enhancement mode
• Fast Switching Speed
• 100% avalanche tested
• Minimum Lot-to-Lot variations

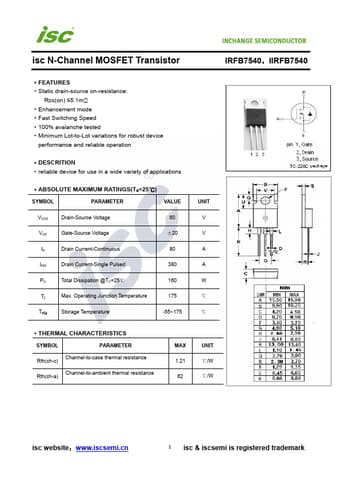

PDF File Details

Part number:

IRFB7540

Manufacturer:

INCHANGE

File Size:

241.00kb

Download:

📄 Datasheet

Description:

N-channel mosfet.

IRFB7540 Application

• Applications
• ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE VDSS Drain-Source Voltage 60 VGS Gate-Source Voltage ±20 ID
