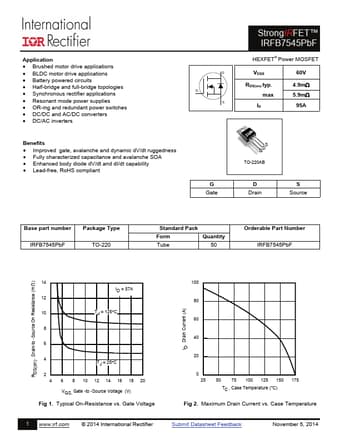

IRFB7545PBF Datasheet - International Rectifier

IRFB7545PBF Power MOSFET

Application  Brushed motor drive applications  BLDC motor drive applications  Battery powered circuits  Half-bridge and full-bridge topologies  Synchronous rectifier applications  Resonant mode power supplies  OR-ing and redundant power switches  DC/DC and AC/DC converters  DC/AC inverters D G S Benefits  Improved gate, avalanche and dynamic dV/dt ruggedness  Fully characterized capacitance and avalanche SOA  Enhanced bod.

IRFB7545PBF Features

* idth, tav, assuming Tj = 150°C and Tstart =25°C (Single Pulse) Avalanche Current (A) 10 1 Allowed avalanche Current vs avalanche pulsewidth, tav, assuming j = 25°C and Tstart = 150°C. 0.1 1.0E-06 1.0E-05 1.0E-04 1.0E-03 tav (sec) Fig 15. Avalanche Current vs. Pulse Width 1.0E-02 EAR ,
