IRFHS8242PBF Datasheet - International Rectifier

IRFHS8242PBF, HEXFET Power MOSFET

VDS VGS max RDS(on) max (@VGS = 10V) Qg (typical) ( @ VGS = 4.5V) ID (@Tc(Bottom) = 25°C) Applications * System/Load Switch 25 ±20 13.0 4.3 d.

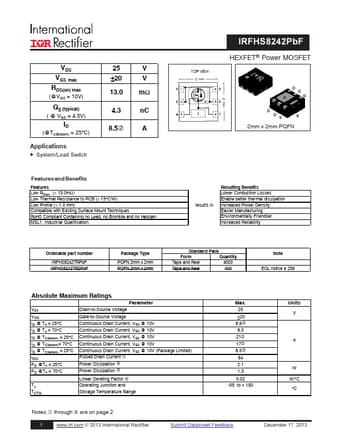

datasheet Preview Page 1 from Datasheet4u.com

IRFHS8242PBF_InternationalRectifier.pdf

IRFHS8242PBF Datasheet Preview — Preview of IRFHS8242PBF PDF

Datasheet Details

Part number:

IRFHS8242PBF

Manufacturer:

International Rectifier

File Size:

245.62 KB

Description:

HEXFET Power MOSFET

Features

* Features Low RDSon (≤ 13.0mΩ) Low Thermal Resistance to PCB (≤ 13°C/W) Low Profile (≤ 1.0 mm) Compatible with Existing Surface Mount Techniques RoHS Compliant Containing no Lead, no Bromide and no Halogen MSL1, Industrial Qualification TOP VIEW IRFHS8242PbF HEXFET® Power MOSFET D1 D2 G3 6D D 5D
