IRFHS8342, IRFHS8342PBF, Power MOSFET

VDS VGS max RDS(on) max (@VGS = 10V) Qg(typical) (@VGS = 4.5V) ID (@Tc(Bottom) = 25°C) 30 V ±20 V 16.0 mΩ 4.2 nC d 8.5 A Applications

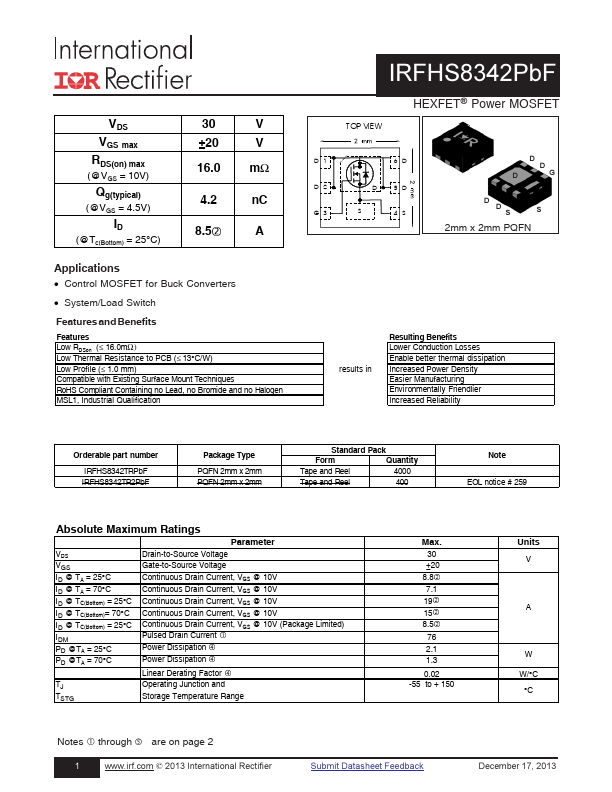

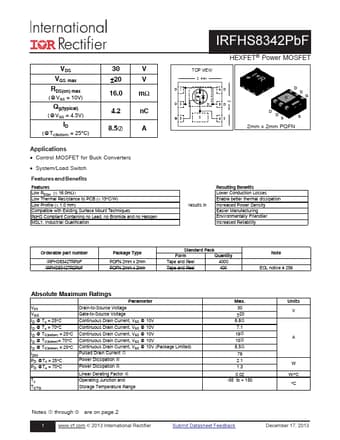

datasheet Preview Page 1 from Datasheet4u.com

IRFHS8342PBF_InternationalRectifier.pdf

IRFHS8342 Datasheet Preview — This datasheet PDF includes multiple part numbers: IRFHS8342, IRFHS8342PBF. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

IRFHS8342, IRFHS8342PBF

Manufacturer:

International Rectifier

File Size:

245.49 KB

Description:

Power MOSFET

Note:

This datasheet PDF includes multiple part numbers: IRFHS8342, IRFHS8342PBF.
Please refer to the document for exact specifications by model.

Features

* Features Low RDSon (≤ 16.0mΩ) Low Thermal Resistance to PCB (≤ 13°C/W) Low Profile (≤ 1.0 mm) Compatible with Existing Surface Mount Techniques RoHS Compliant Containing no Lead, no Bromide and no Halogen MSL1, Industrial Qualification IRFHS8342PbF HEXFET® Power MOSFET T OP VIEW D1 D2 G3 6D D 5

Applications

* Control MOSFET for Buck Converters
