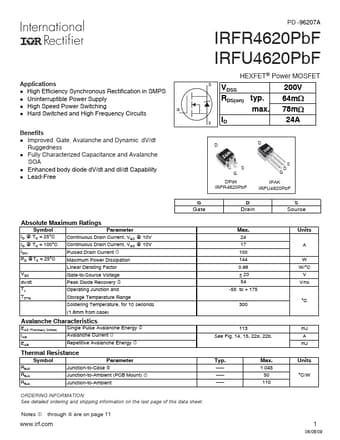

PD -96207A IRFR4620PbF IRFU4620PbF Applications l High Efficiency Synchronous Rectification in SMPS l Uninterruptible Power Supply l High Speed Power Switching l Hard Switched and High Frequency Circuits G Benefits l Improved Gate, Avalanche and Dynamic dV/dt Ruggedness l Fully Characterized Capacitance and Avalanche SOA l Enhanced body diode dV/dt and dI/dt Capability l Lead-Free HEXFET® Power MOSFET D VDSS RDS(on) typ. max. 200V 64m: 78m: S ID 24A DD S G DPak IRFR4620PbF S D G IPAK .

IRFR4620PbF Features

* re PD (ave) = 1/2 ( 1.3

* BV

* Iav) = DT/ ZthJC Iav = 2DT/ [1.3

* BV

* Zth] EAS (AR) = PD (ave)

* tav www.irf.com 5 IRFR/U4620PbF VGS(th), Gate threshold Voltage (V) 6.0 5.5 5.0 4.5 4.0 3.5 3.0 ID = 100µA ID = 250uA 2.5 ID = 1.0mA ID = 1.0A 2.0 1.5 1.0 -75 -50 -25 0 25 50
