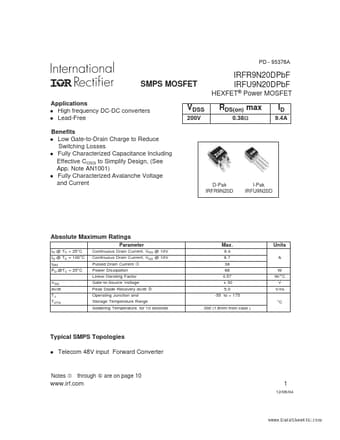

PD - 95376A SMPS MOSFET Applications High frequency DC-DC converters l Lead-Free l HEXFET® Power MOSFET IRFR9N20DPbF IRFU9N20DPbF ID 9.4A VDSS 200V RDS(on) max 0.38Ω Benefits Low Gate-to-Drain Charge to Reduce Switching Losses l Fully Characterized Capacitance Including Effective COSS to Simplify Design, (See App.
Note AN1001) l Fully Characterized Avalanche Voltage and Current l D-Pak IRFR9N20D I-Pak IRFU9N20D Absolute Maximum Ratings Parameter ID @ TC = 25°C ID @ TC = 100°C IDM PD @TC
IRFR9N20DPBF Features
* ww.irf.com 9 IRFR/U9N20DPbF D-Pak (TO-252AA) Tape & Reel Information Dimensions are shown in millimeters (inches) TR TRR TRL 16.3 ( .641 ) 15.7 ( .619 ) 16.3 ( .641 ) 15.7 ( .619 ) 12.1 ( .476 ) 11.9 ( .469 ) FEED DIRECTION 8.1 ( .318 ) 7.9 ( .312 ) FEED DIRECTION NOTES : 1. CONTROLLING DIM
IRFR9N20DPBF_InternationalRectifier.pdf
Datasheet Details
IRFR9N20DPBF
International Rectifier
225.50 KB
Hexfet power mosfet.
