IRFR9N20D - Power MOSFET

IRFR9N20D Description

PD - 93919A SMPS MOSFET Applications High frequency DC-DC converters IRFR9N20D IRFU9N20D HEXFET® Power MOSFET l VDSS 200V RDS(on) max 0.38Ω ID 9.

IRFR9N20D Features

* ckage Outline Dimensions are shown in millimeters (inches) 6 .7 3 (.26 5 ) 6 .3 5 (.25 0 ) -A 5 .4 6 (.2 1 5 ) 5 .2 1 (.2 0 5 ) 4 1 .2 7 ( .0 5 0 ) 0 .8 8 ( .0 3 5 ) 2 .3 8 (.0 9 4 ) 2 .1 9 (.0 8 6 ) 0 .5 8 (.0 2 3 ) 0 .4 6 (.0 1 8 ) L E A D A S S IG N M E N T S 1 - GATE 2 - D R A IN 3 - SOURCE 4

IRFR9N20D Applications

* High frequency DC-DC converters IRFR9N20D IRFU9N20D HEXFET® Power MOSFET l VDSS 200V RDS(on) max 0.38Ω ID 9.4A Benefits Low Gate-to-Drain Charge to Reduce Switching Losses l Fully Characterized Capacitance Including Effective COSS to Simplify Design, (See App. Note AN1001) l Fully Characterize

📥 Download Datasheet

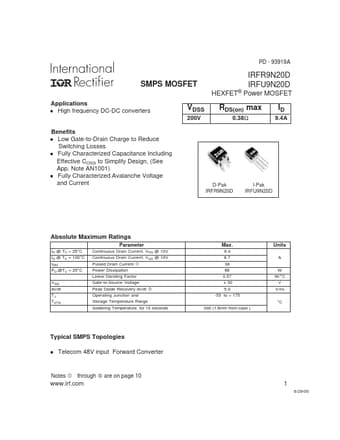

Preview of IRFR9N20D PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
IRFR9N20D
Manufacturer
IRF
File Size
126.80 KB
Datasheet
IRFR9N20D_IRF.pdf
Description
Power MOSFET
