IRFU3410, IRFR3410 Datasheet - International Rectifier

IRFR3410_InternationalRectifier.pdf

This datasheet PDF includes multiple part numbers: IRFU3410, IRFR3410. Please refer to the document for exact specifications by model.

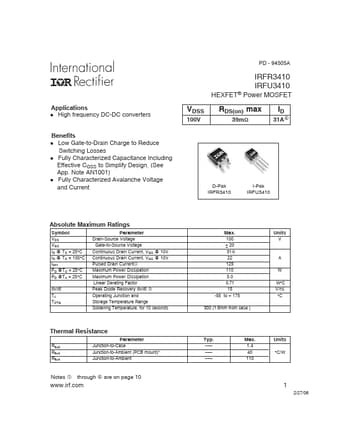

IRFU3410 Datasheet Preview Page 2 IRFU3410 Datasheet Preview Page 3

Datasheet Details

Part number:

IRFU3410, IRFR3410

Manufacturer:

International Rectifier

File Size:

282.14 KB

Description:

Power mosfet.

Note:

This datasheet PDF includes multiple part numbers: IRFU3410, IRFR3410.
Please refer to the document for exact specifications by model.

IRFU3410, IRFR3410, Power MOSFET

Applications l High frequency DC-DC converters Benefits l Low Gate-to-Drain Charge to Reduce Switching Losses l Fully Characterized Capacitance Including Effective COSS to Simplify Design, (See App.

Note AN1001) l Fully Characterized Avalanche Voltage and Current PD - 94505A IRFR3410 IRFU3410 HEXFET® Power MOSFET VDSS 100V RDS(on) max 39mΩ ID 31A† D-Pak IRFR3410 I-Pak IRFU3410 Absolute Maximum Ratings Symbol VDS VGS ID @ TC = 25°C ID @ TC = 100°C IDM PD @TC = 25°C PD @TA = 25°C dv/dt TJ
