Datasheet Details
Part number:
IRFU3418PBF, IRFR3418PBF
Manufacturer:
International Rectifier
File Size:
238.50 KB
Description:
Hexfet power mosfet.
Note:
This datasheet PDF includes multiple part numbers: IRFU3418PBF, IRFR3418PBF.
Please refer to the document for exact specifications by model.
IRFU3418PBF, IRFR3418PBF, HEXFET Power MOSFET

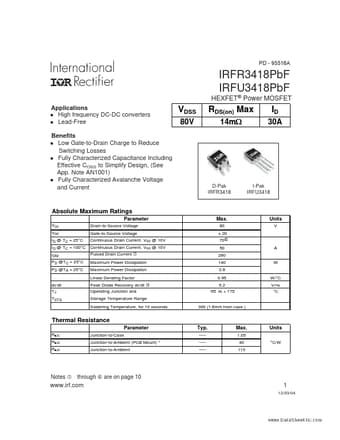

PD - 95516A HEXFET® Power MOSFET Applications High frequency DC-DC converters l Lead-Free l IRFR3418PbF IRFU3418PbF 14m: VDSS 80V RDS(on) Max ID 30A Benefits Low Gate-to-Drain Charge to Reduce Switching Losses l Fully Characterized Capacitance Including Effective COSS to Simplify Design, (See App.
Note AN1001) l Fully Characterized Avalanche Voltage and Current l D-Pak IRFR3418 I-Pak IRFU3418 Absolute Maximum Ratings Parameter VDS VGS ID @ TC = 25°C ID @ TC = 100°C IDM PD @TC = 25°C PD
IRFU3418PBF Features
* K 19 A = AS SEMBLY S IT E CODE www.irf.com 9 IRFR/U3418PbF D-Pak (TO-252AA) Tape & Reel Information Dimensions are shown in millimeters (inches) TR TRR TRL 16.3 ( .641 ) 15.7 ( .619 ) 16.3 ( .641 ) 15.7 ( .619 ) 12.1 ( .476 ) 11.9 ( .469 ) FEED DIRECTION 8.1 ( .318 ) 7.9 ( .312 ) FEED DIREC
