IRFU48Z, IRFR48Z Power MOSFET

International Rectifier

Description

PD - 95950A IRFR48ZPbF .
This HEXFET® Power MOSFET utilizes the latest processing techniques to achieve extremely low on-resistance per silicon area.

📥 Download Datasheet

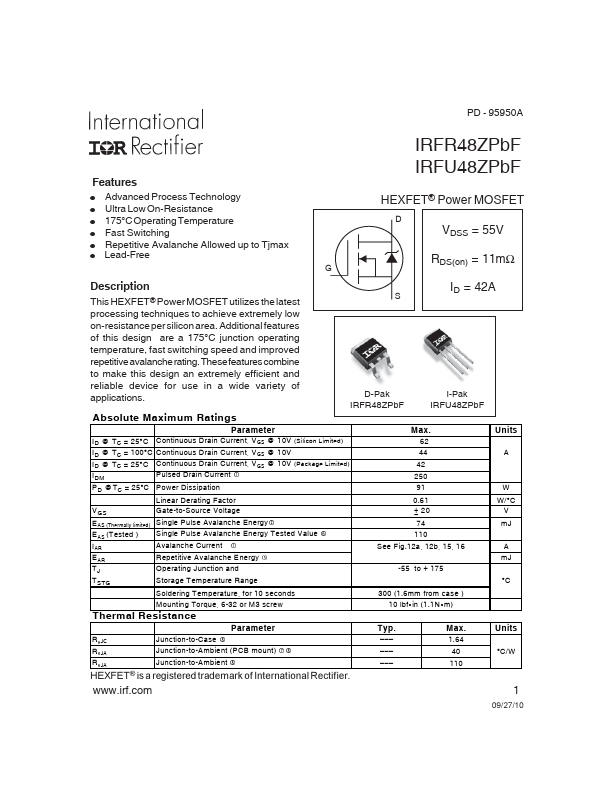

IRFU48Z Datasheet Preview — This datasheet PDF includes multiple part numbers: IRFU48Z, IRFR48Z. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: IRFU48Z, IRFR48Z
Manufacturer: International Rectifier
File Size: 357.45 KB
Datasheet: IRFR48Z_InternationalRectifier.pdf
Description: Power MOSFET
Note: This datasheet PDF includes multiple part numbers: IRFU48Z, IRFR48Z.
Please refer to the document for exact specifications by model.

Applications

* ID = 42A S D-Pak IRFR48ZPbF I-Pak IRFU48ZPbF Absolute Maximum Ratings Parameter ID @ TC = 25°C Continuous Drain Current, VGS @ 10V (Silicon Limited) ID @ TC = 100°C Continuous Drain Current, VGS @ 10V ID @ TC = 25°C Continuous Drain Current, VGS @ 10V (Package Limited) IDM Pulsed Drain
