IRLHS6242, IRLHS6242PBF Datasheet - International Rectifier

IRLHS6242, IRLHS6242PBF, Power MOSFET

VDS VGS RDS(on) max (@VGS = 4.5V) RDS(on) max (@VGS = 2.5V) ID (@TC (Bottom) = 25°C) 20 V ±12 V 11.7 mΩ 15.5 mΩ 12d A Applications .

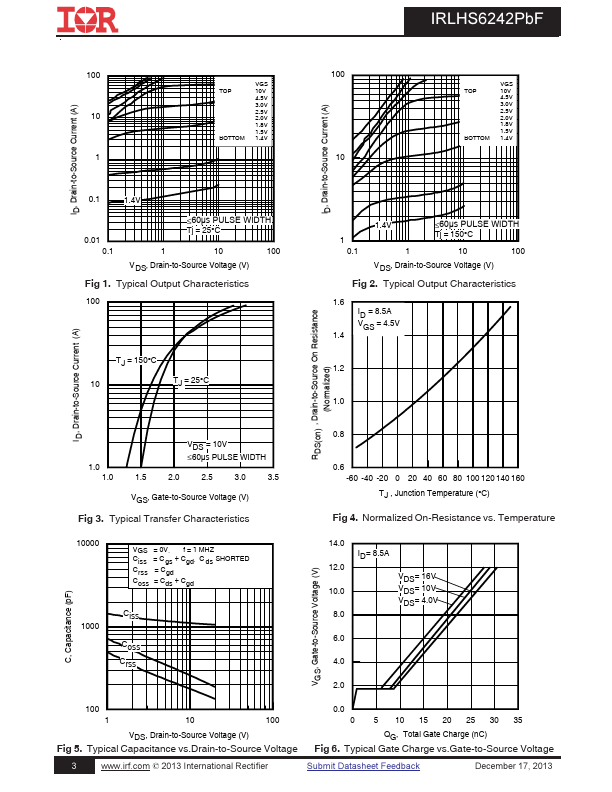

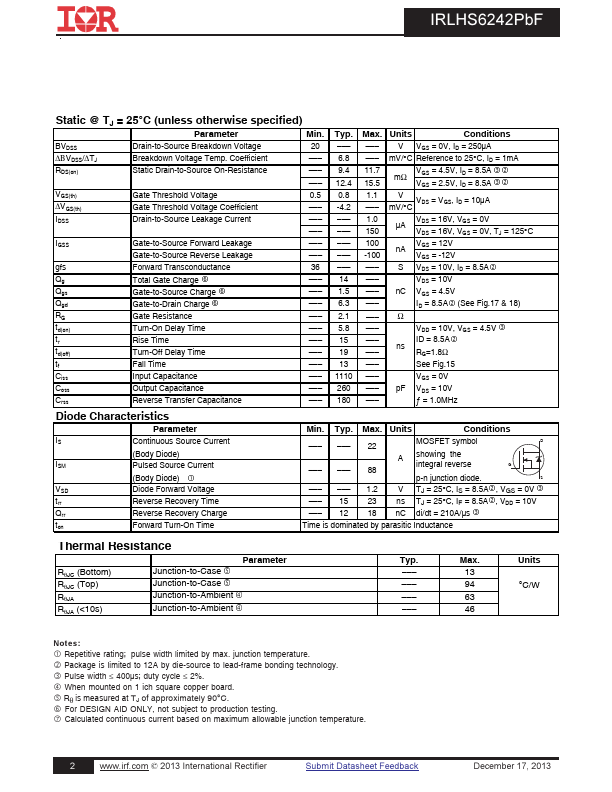

datasheet Preview Page 1 from Datasheet4u.com

IRLHS6242PBF_InternationalRectifier.pdf

IRLHS6242 Datasheet Preview — This datasheet PDF includes multiple part numbers: IRLHS6242, IRLHS6242PBF. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

IRLHS6242, IRLHS6242PBF

Manufacturer:

International Rectifier

File Size:

254.26 KB

Description:

Power MOSFET

Note:

This datasheet PDF includes multiple part numbers: IRLHS6242, IRLHS6242PBF.
Please refer to the document for exact specifications by model.

Features

* Features Low RDSon (≤ 11.7mΩ) Low Thermal Resistance to PCB (≤ 13°C/W) Low Profile (≤ 1.0mm) Industry-Standard Pinout Compatible with Existing Surface Mount Techniques RoHS Compliant Containing no Lead, no Bromide and no Halogen MSL1, Industrial Qualification Orderable part number IRLHS6242TRPbF IR

Applications

* Charge and discharge switch for battery application
