IRL100HS121 MOSFET

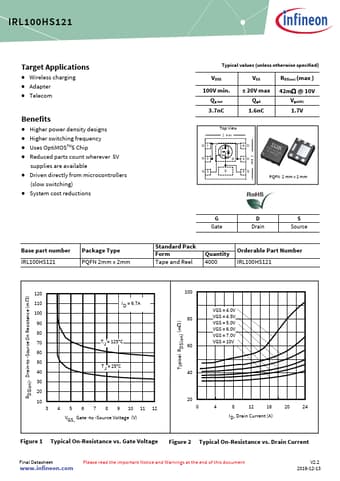

IRL100HS121 Target Applications Wireless charging Adapter Telecom Benefits Higher power density designs Higher switching frequency Uses OptiMOSTM5 Chip Reduced parts count wherever 5V supplies are available Driven directly from microcontrollers (slow switching) System cost reductions Typical values (unless otherwise specified) VDSS 100V min. Qg tot 3.7nC VGS ± 20V max Qgd 1.6nC RDS(on) (max.) 42m@ 10V Vgs(th) 1.7V Top View D1 6.
