IRL1004SPBF Datasheet, Mosfet, International Rectifier

IRL1004SPBF Features

• Mosfet IRL1004S/LPbF Peak Diode Recovery dv/dt Test Circuit D.U.T +
• + Circuit Layout Considerations
• Low Stray Inductance
• Ground Plane
• Low Leakage I

PDF File Details

Part number:

IRL1004SPBF

Manufacturer:

International Rectifier

File Size:

232.62kb

Download:

📄 Datasheet

Description:

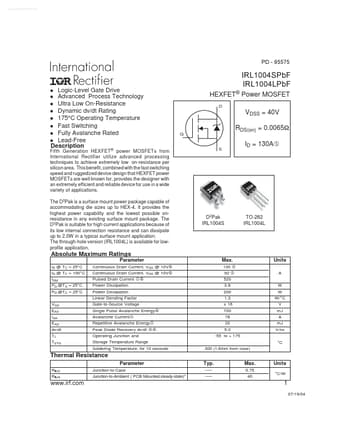

Power mosfet. l l IRL1004SPbF IRL1004LPbF HEXFET® Power MOSFET D VDSS = 40V G S RDS(on) = 0.0065Ω ID = 130A… Fifth Generation HEXFET® power MOS

IRL1004SPBF Application

• Applications The D2Pak is a surface mount power package capable of accommodating die sizes up to HEX-4. It provides the highest power capability an
