IRLHS6342, IRLHS6342PBF Datasheet - International Rectifier

IRLHS6342, IRLHS6342PBF, Power MOSFET

VDS VGS RDS(on) max (@VGS = 4.5V) Qg (typical) ID (@TC (Bottom) = 25°C) 30 ±12 15.5 11 12i V V mΩ nC A Applications * Charge and discharge .

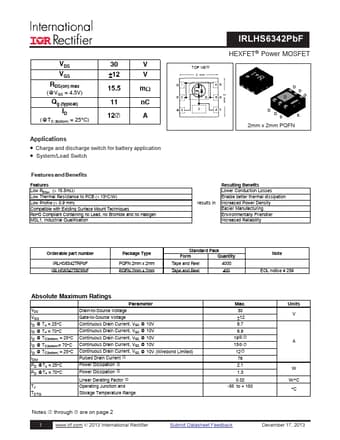

datasheet Preview Page 1 from Datasheet4u.com

IRLHS6342PBF_InternationalRectifier.pdf

IRLHS6342 Datasheet Preview — This datasheet PDF includes multiple part numbers: IRLHS6342, IRLHS6342PBF. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

IRLHS6342, IRLHS6342PBF

Manufacturer:

International Rectifier

File Size:

250.13 KB

Description:

Power MOSFET

Note:

This datasheet PDF includes multiple part numbers: IRLHS6342, IRLHS6342PBF.
Please refer to the document for exact specifications by model.

Features

* Features Low RDSon (≤ 15.5mΩ) Low Thermal Resistance to PCB (≤ 13°C/W) Low Profile (≤ 0.9 mm) Compatible with Existing Surface Mount Techniques RoHS Compliant Containing no Lead, no Bromide and no Halogen MSL1, Industrial Qualification results in Resulting Benefits Lower Conduction Losses Enable b

Applications

* Charge and discharge switch for battery application
