IRLHS6342PBF

Power MOSFET

International Rectifier

Download Datasheet (305.21 KB)

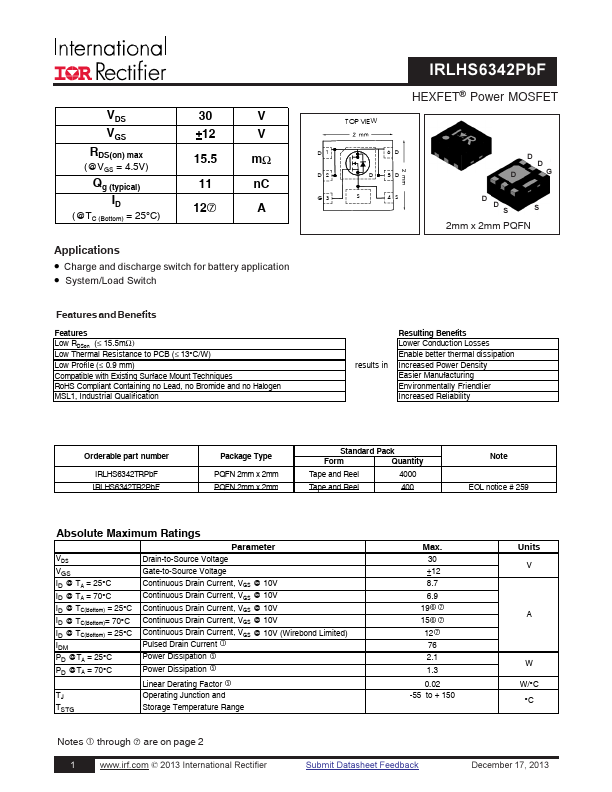

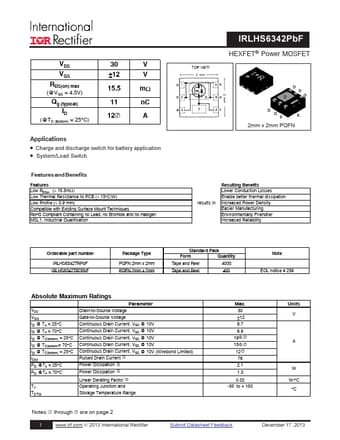

IRLHS6342PBF Datasheet Preview — Preview of IRLHS6342PBF Datasheet

Datasheet Details

Part number:

IRLHS6342PBF

Manufacturer:

International Rectifier

File Size:

305.21 KB

Description:

Power mosfet.
PD - 96339A IRLHS6342PbF VDS VGS RDS(on) max (@VGS = 4.5V) 30 ±12 15.5 11 12 V V mΩ nC A D 1 HEX.
FET® Power MOSFET TOP VIEW 6 D D D D D Qg (typical) ID (@TC (Bottom) = 25°C) D 2 S D 5 D G .

✔ IRLHS6342PBF Features

Features Low RDSon (≤ 15.5mΩ) Low Thermal Resistance to PCB (≤ 13°C/W) Low Profile (≤ 1.0 mm) Compatible with Existing Surface Mount Techniques RoHS Compliant Containing

✔ IRLHS6342PBF Application

Charge and discharge switch for battery application
System/Load Switch Features and Benefits Features L
