IRLR7811WCPBF HEXFET Power MOSFET

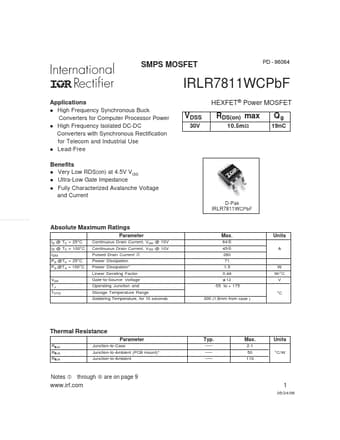

SMPS MOSFET PD - 96064 IRLR7811WCPbF Applications l High Frequency Synchronous Buck Converters for Computer Processor Power l High Frequency Isolated DC-DC Converters with Synchronous Rectification for Telecom and Industrial Use l Lead-Free Benefits Very Low RDS(on) at 4.5V VGS l Ultra-Low Gate Impedance l Fully Characterized Avalanche Voltage and Current l HEXFET® Power MOSFET VDSS 30V RDS(on) max 10.5mΩ Qg 19nC D-Pak IRLR7811WCPbF www.DataSheet4U.com Absolute Maximum Ratings Parameter .

IRLR7811WCPBF Features

* millimeters (inches) TR TRR TRL 16.3 ( .641 ) 15.7 ( .619 ) 16.3 ( .641 ) 15.7 ( .619 ) 12.1 ( .476 ) 11.9 ( .469 ) FEED DIRECTION 8.1 ( .318 ) 7.9 ( .312 ) FEED DIRECTION NOTES : 1. CONTROLLING DIMENSION : MILLIMETER. 2. ALL DIMENSIONS ARE SHOWN IN MILLIMETERS ( INCHES ). 3. OUTLINE CONFORMS
