IRLR014A - N-Channel MOSFET

IRLR014A Description

Isc N-Channel MOSFET Transistor IRLR014A *.

IRLR014A Features

* With To-252(DPAK) package
* Low input capacitance and gate charge
* Low gate input resistance
* 100% avalanche tested
* Minimum Lot-to-Lot variations for robust device performance and reliable operation

IRLR014A Applications

* Switching applications
* ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE VDSS Drain-Source Voltage 50 VGSS ID IDM Gate-Source Voltage Drain Current-ContinuousTc=25℃ Tc=100℃ Drain Current-Single Pulsed ±10 7.7 4.9 31 PD Total Dissipation @TC=25℃ 25 Tch Max. Operating Ju

📥 Download Datasheet

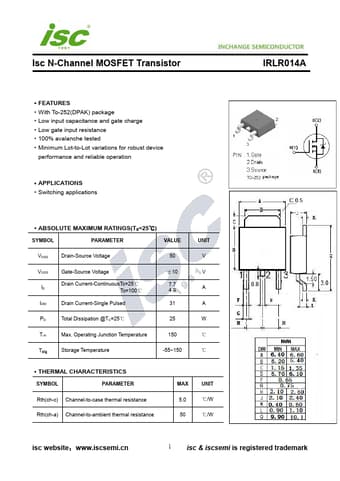

Preview of IRLR014A PDF
datasheet Preview Page 2

Datasheet Details

Part number
IRLR014A
Manufacturer
INCHANGE
File Size
252.53 KB
Datasheet
IRLR014A-INCHANGE.pdf
Description
N-Channel MOSFET
