IRLTS2242, IRLTS2242PbF Datasheet - International Rectifier

IRLTS2242, IRLTS2242PbF, Power MOSFET

VDSS VGS RDS(on) max (@ VGS = -4.5V) RDS(on) max (@ VGS = -2.5V) Qg (typical) ID (@TA = 25°C) -20 V ± 12 V 32 m 55 m 12 nC -6.9 A A.

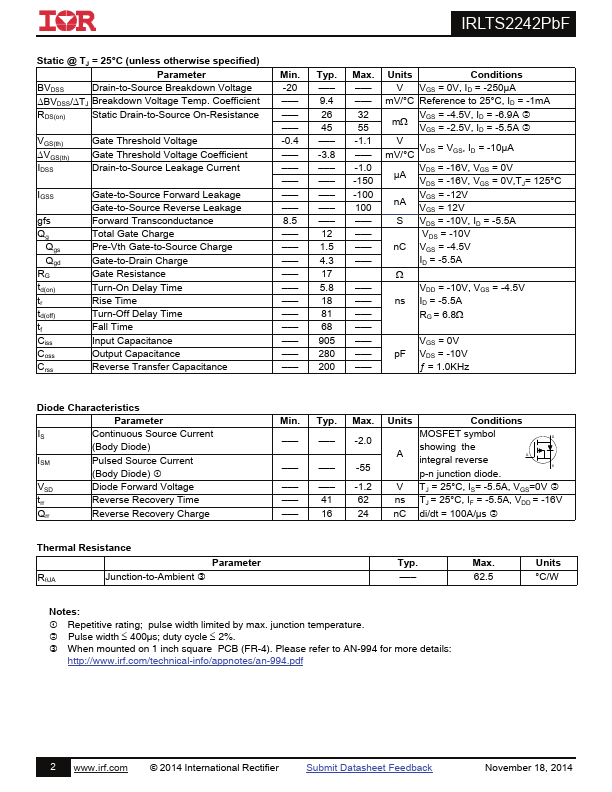

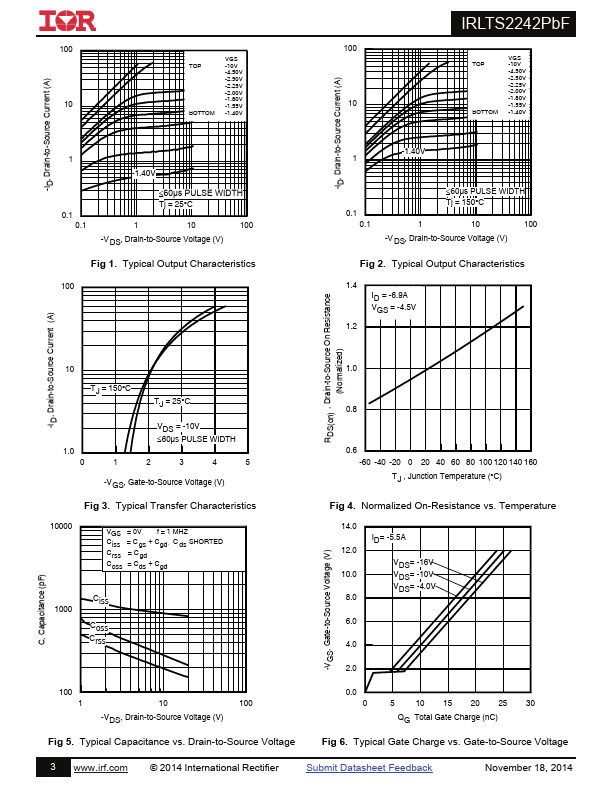

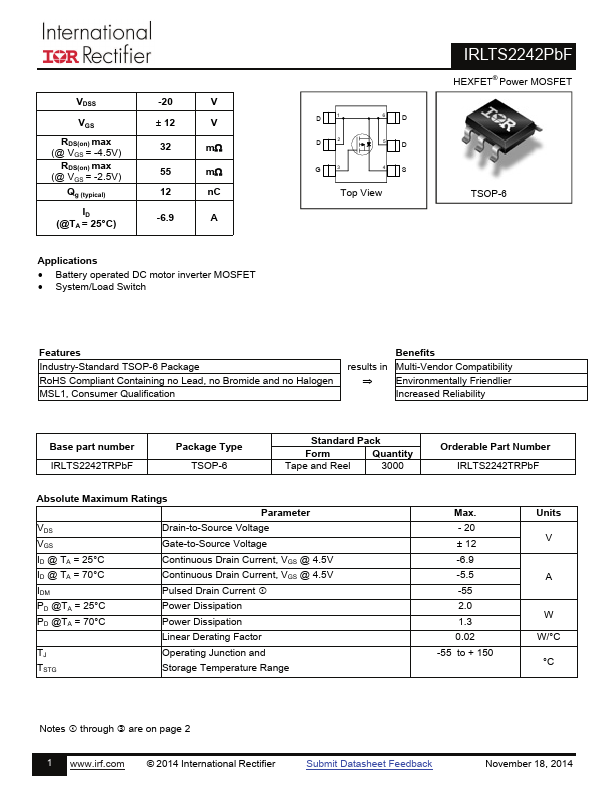

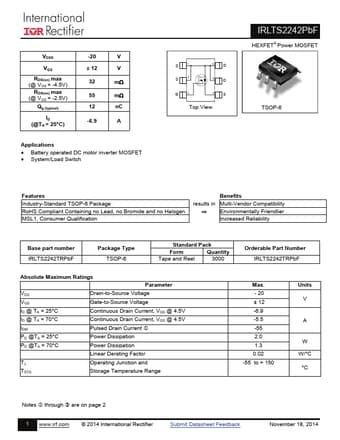

datasheet Preview Page 1 from Datasheet4u.com

IRLTS2242PbF-InternationalRectifier.pdf

IRLTS2242 Datasheet Preview — This datasheet PDF includes multiple part numbers: IRLTS2242, IRLTS2242PbF. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

IRLTS2242, IRLTS2242PbF

Manufacturer:

International Rectifier

File Size:

548.88 KB

Description:

Power MOSFET

Note:

This datasheet PDF includes multiple part numbers: IRLTS2242, IRLTS2242PbF.
Please refer to the document for exact specifications by model.

Features

* Industry-Standard TSOP-6 Package RoHS Compliant Containing no Lead, no Bromide and no Halogen MSL1, Consumer Qualification Benefits results in Multi-Vendor Compatibility  Environmentally Friendlier Increased Reliability Base part number IRLTS2242TRPbF Package Type TSOP-6 Standard Pack Form Q

Applications

*  Battery operated DC motor inverter MOSFET
