IRLTS6342, IRLTS6342PbF Datasheet - International Rectifier

IRLTS6342, IRLTS6342PbF, Power MOSFET

VDS VGS RDS(on) max (@VGS = 4.5V) RDS(on) max (@VGS = 2.5V) Qg (typical) ID (@TA = 25°C) 30 V ±12 V 17.5 mΩ 22.0 mΩ 11 nC 8.3 A PD - 9773.

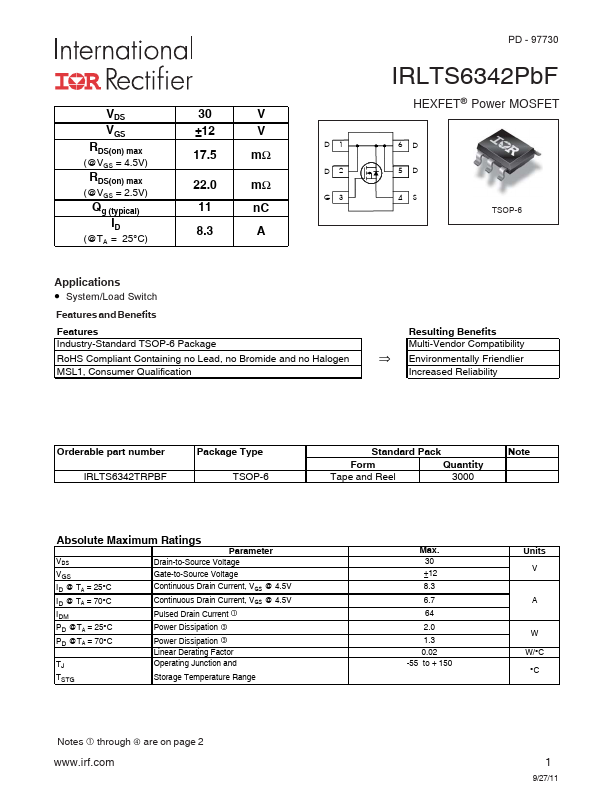

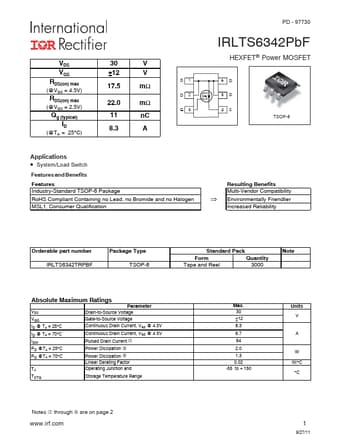

datasheet Preview Page 1 from Datasheet4u.com

IRLTS6342PbF-InternationalRectifier.pdf

IRLTS6342 Datasheet Preview — This datasheet PDF includes multiple part numbers: IRLTS6342, IRLTS6342PbF. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

IRLTS6342, IRLTS6342PbF

Manufacturer:

International Rectifier

File Size:

239.73 KB

Description:

Power MOSFET

Note:

This datasheet PDF includes multiple part numbers: IRLTS6342, IRLTS6342PbF.
Please refer to the document for exact specifications by model.

Features

* Features Industry-Standard TSOP-6 Package RoHS Compliant Containing no Lead, no Bromide and no Halogen MSL1, Consumer Qualification Resulting Benefits Multi-Vendor Compatibility ⇒ Environmentally Friendlier Increased Reliability Orderable part number IRLTS6342TRPBF Package Type TSOP-6 Standard P
