IRPT1065A Datasheet - International Rectifier

IRPT1065A Power Module

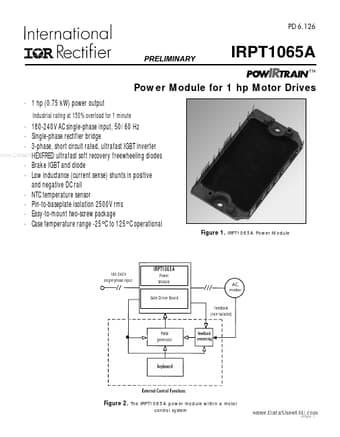

PD 6.126 IRPT1065A PRELIMINARY IRPT1065A ™ Power Module for 1 hp Motor Drives 1 hp (0.75 kW) power output Industrial rating at 150% overload for 1 minute 180-240V AC single-phase input, 50/60 Hz Single-phase rectifier bridge 3-phase, short circuit rated, ultrafast IGBT inverter www.DataSheet4U.com HEXFRED ultrafast soft recovery freewheeling diodes Brake IGBT and diode Low inductance (current sense) shunts in positive and negative DC rail NTC t.

IRPT1065A Datasheet (231.30 KB)

Preview of IRPT1065A PDF

Datasheet Details

Part number:

IRPT1065A

Manufacturer:

International Rectifier

File Size:

231.30 KB

Description:

Power module.
