IRS2113SPBF, IRS2110 - HIGH AND LOW SIDE DRIVER

International Rectifier

📥 Download Datasheet

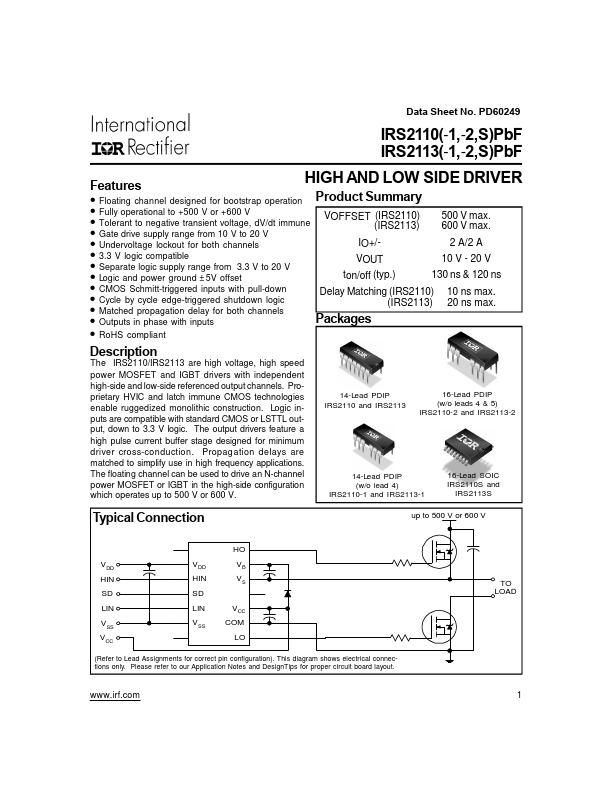

IRS2113SPBF Datasheet Preview — This datasheet PDF includes multiple part numbers: IRS2113SPBF, IRS2110. Please refer to the document for exact specifications by model.

datasheet Preview Page 2

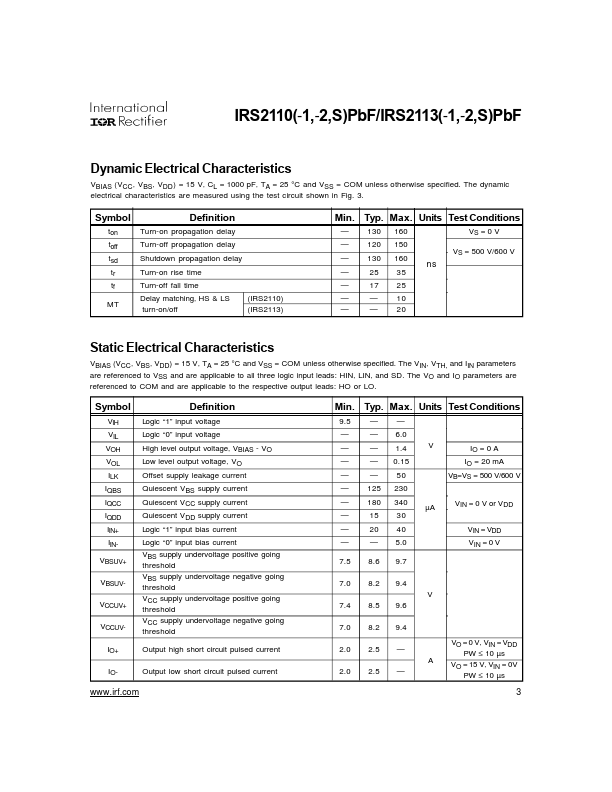

datasheet Preview Page 3

Datasheet Details

Part number	IRS2113SPBF, IRS2110
Manufacturer	International Rectifier
File Size	572.46 KB
Description	HIGH AND LOW SIDE DRIVER
Datasheet	IRS2110_InternationalRectifier.pdf
Note	This datasheet PDF includes multiple part numbers: IRS2113SPBF, IRS2110. Please refer to the document for exact specifications by model.

IRS2113SPBF Product details

Description

The IRS2110/IRS2113 are high voltage, high speed power MOSFET and IGBT drivers with independent high-side and low-si

Features

HIGH AND LOW SIDE DRIVER.
Floating channel designed for bootstrap operation Product Summary.
Fully operational to +500 V or +600 V.
Tolerant to negative transient voltage, dV/dt immune.
Gate drive supply range from 10 V to 20 V.
