IRS2110 - HIGH AND LOW SIDE DRIVER

International Rectifier

📥 Download Datasheet

IRS2110 Datasheet Preview — Preview of IRS2110 PDF

Datasheet Details

Part number: IRS2110
Manufacturer: International Rectifier
File Size: 572.46 KB
Datasheet: IRS2110_InternationalRectifier.pdf
Description: HIGH AND LOW SIDE DRIVER

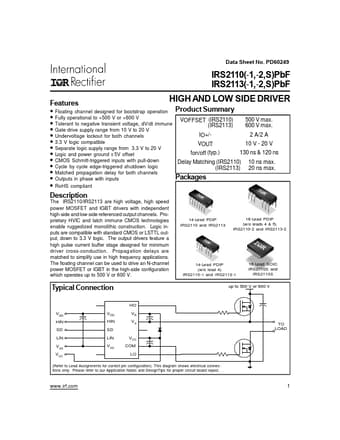

IRS2110 Product details

Description

The IRS2110/IRS2113 are high voltage, high speed power MOSFET and IGBT drivers with independent high-side and low-side referenced output channels.Proprietary HVIC and latch immune CMOS technologies enable ruggedized monolithic construction.Logic inputs are compatible with standard CMOS or LSTTL out- 14-Lead PDIP IRS2110 and IRS2113 16-Lead PDIP (w/o leads 4 & 5) IRS2110-2 and IRS2113-2 put, down to 3.3 V logic.The output drivers feature a high pulse current buffer stage designed for mi

Features

HIGH AND LOW SIDE DRIVER.
Floating channel designed for bootstrap operation Product Summary.
Fully operational to +500 V or +600 V.
Tolerant to negative transient voltage, dV/dt immune.
Gate drive supply range from 10 V to 20 V.
