IRS2110SPBF

HIGH AND LOW SIDE DRIVER

IRS2110SPBF Features

* HIGH AND LOW SIDE DRIVER

* Floating channel designed for bootstrap operation Product Summary

* Fully operational to +500 V or +600 V

* Tolerant to negative transient voltage, dV/dt immune

* Gate drive supply range from 10 V to 20 V VOFFSET (IRS2110) (IRS2113) 500

IRS2110SPBF General Description

The IRS2110/IRS2113 are high voltage, high speed power MOSFET and IGBT drivers with independent high-side and low-si.

IRS2110SPBF Datasheet (572.46 KB)

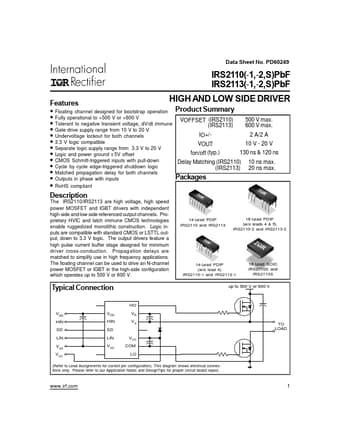

Preview of IRS2110SPBF PDF

Datasheet Details

Part number:

IRS2110SPBF

Manufacturer:

International Rectifier

File Size:

572.46 KB

Description:

High and low side driver.
